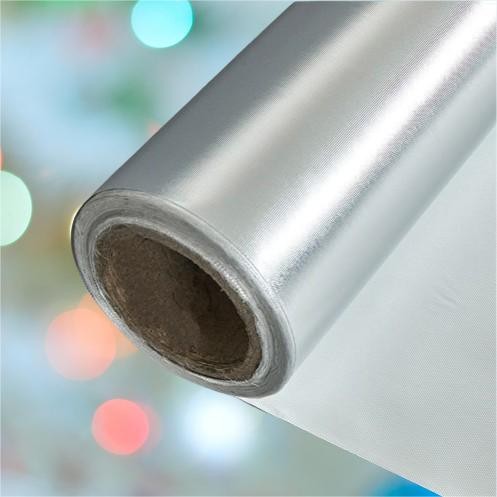

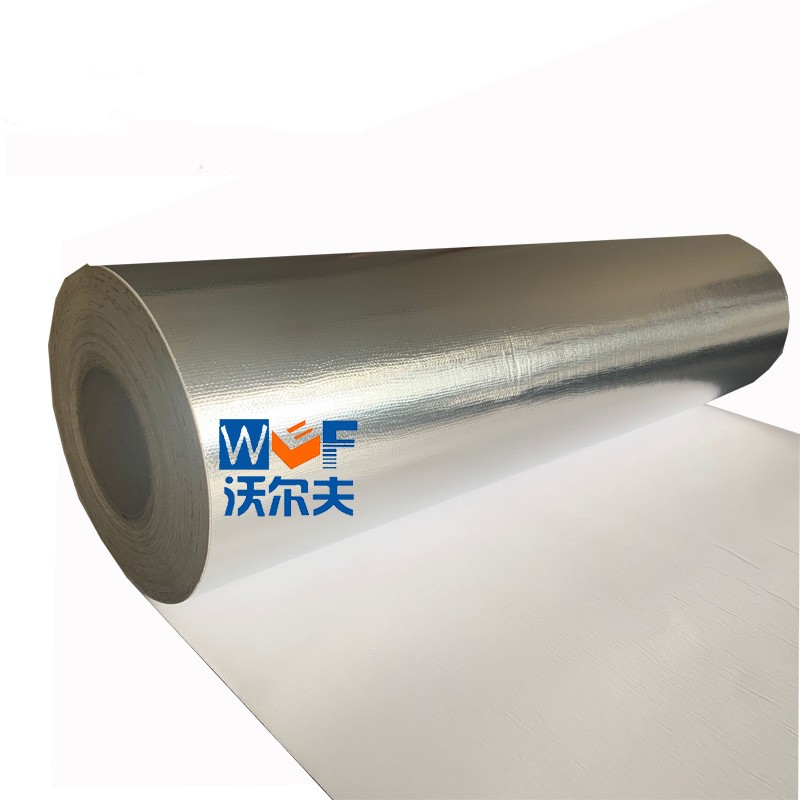

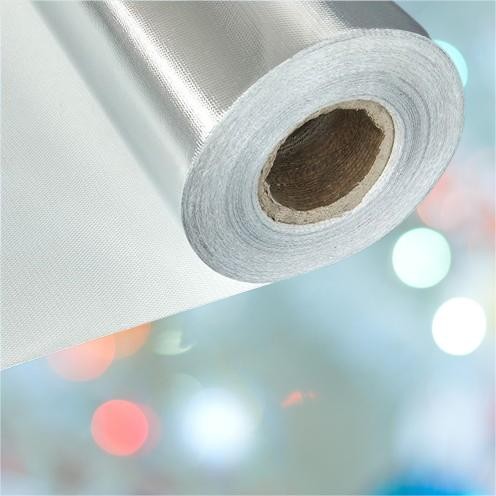

3732 aluminum foil fiberglass cloth

Product introduction: Braided by high strength glass fiber yarn, because of its unique chemical and physical properties, and other materials after composite, can be derived from a wide range of applications of a variety of related materials.

Performance characteristics:

1. Excellent high temperature and low temperature resistance, low temperature -70℃, high temperature above 280℃;

2. High fabric strength; Both soft and toughness, can be cut processing;

3. Chemical corrosion resistance is very good, with oil resistance, acid resistance, waterproof;

4. Heat aging and climate aging resistance, can be used in bad weather for a long time and maintain physical stability;

5. Electrical insulation, with high electrical insulation grade, can withstand high voltage load;

Application field:

Aluminum foil composite, adhesive coating, pipe bandaging, waterproof application, electrical insulation, non-metal compensator, etc

Product specifications: (According to the general specifications, specifications, gram weight, width, roll length can be customized)

Specification	g/m²	width
3732-420	420	1020
3732-420	420	1220
3732-420	420	1520

7268 electronic cloth aluminum foil composite material

Product introduction: Glass fiber electronic cloth, mainly using G75# electronic grade glass fiber yarn (E-GLASSFIBER), woven with plain weave.

Performance characteristics: good electrical insulation, fire retardant, waterproof, aging resistance, weather resistance, high strength, high modulus, etc.

Application field: Because of its unique physical and chemical properties, glass fiber electronic cloth is widely used in the production of epoxy copper clad plate and electrical insulation products, printed circuit boards, fire boards, insulation boards, and wind power generation, aviation, military and other high demand materials.

Product specifications: (According to the general specifications, specifications, gram weight, width, roll length can be customized)

Specification	g/m²	Width(mm)
7628-1050	230	1050
7628-1140	230	1140
7628-1245	230	1245
7628-1270	230	1270
